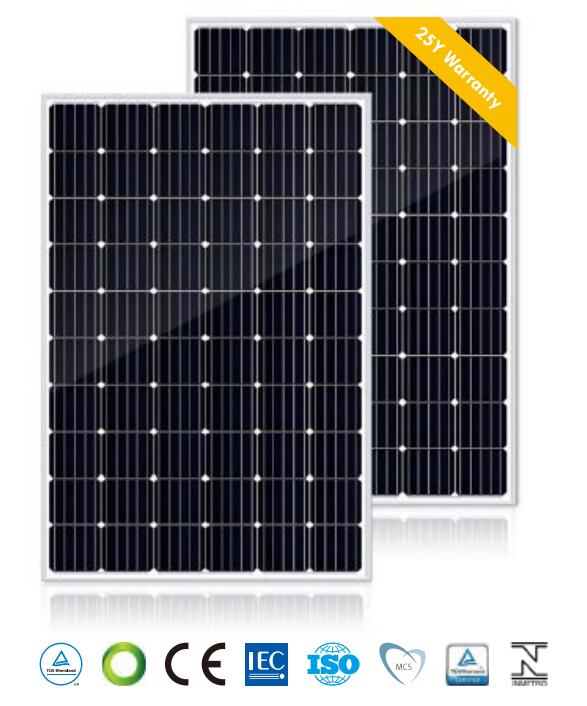

Mono 290W, 300W,310W,320W,330W solar panel 60cells(156.75*156.75 Mono)

Mono 290W, 300W,310W,320W,330W solar panel 60cells(156.75*156.75 Mono)

U.S.＄ 0.00
60.00






Mono 290W, 300W,310W,320W,330W solar panel 60cells(156.75*156.75 Mono)


Features:


Outstanding mechanical load resistance

2400 Pa wind load, 5400 Pa snow load


Anti-PID(potential induced degradation)

Passed anti-PID test under 85% damp heat, 85% relative humidity for 96 hours


Great Durability against extreme conditions


Pass salt mist corrosion test,ammonia corrosion test,dust&sand test,fire test.


Double electroluminescence ( EL ) tests

Carefully inspected before and after lamination to guarantee fault-free modules



ELECTRICAL PERFORMANCE


ModelEX290W-30MEX300W-30M(HOT)EX310W-30MEX320W-30MEX330W-30M
Dimensions (L / W / H)1640*992*35mm1640*992*35mm1640*992*35mm1640*992*35mm1640*992*35mm
Peak Power at STC (Pmax)290300310320330
Maximum Power Voltage (Vmp)30.9532.6233.4834.1533.7
Maximum Power Current (Imp)9.379.1989.269.379.8
Open Circuit Voltage (Voc)36.8338.2139.224041.4
Short Circuit Current (Isc)9.939.729.789.910.2



THERMAL CHARACTERISTICS & OPERATING CONDITIONS


Maximum System Voltage(V)1000V
Maximum Series Fuse Rating(A)15
Power Tolerance0~±3%
Pmax temperature Coefficients(W/℃)-0.360%
Voc temperature Coefficients(V/℃)-0.290%
Isc temperature Coefficients(A/℃)+0.048 %
NOCT Nominal Operating Cell Temperature(℃ )45±2
Operating and Storage Temperature(℃ )-40°C~+85°C




CONSTRUCTION MATERIALS


Front Cover (Material / Thickness)low-iron tempered glass / 3.2mm
Cell (Quantity/Type/Dimensions)156.75*156.75 Mono
No. of Cells60 (Layout:6*10)
Frame (Material)Anodized Aluminium Alloy
Junction Box (Protection Degree)IP65/IP67
Cable (Length/Cross-Sectional Area)4mm² cable 90cm+mc4
